| Heat
Exchanger |
Model |
Specs |
Buy
Now! |
Refrigerator/Freezer
UV Dye Filter/Drier
Replacement for
OEM 7006964
-
100% XH-9
Beaded desiccant
-
Compatible
with all new and existing refrigerants and oils.
-
Reduces wear
& tear on component parts
-
Maximum working
pressure 500psi.
|
-
Use on capillary
or expansion valve systems.
-
Hermetically
sealed, directional flow with access valve.
-
Copper shells
and end tubes.
-
100 Micron
filter sieve.
-
Easy break
off grooved ends.
-
Reduces clogged
capillary tubes.
-
Magnetic reduction
filter reduces microscopic steel, iron, & stainless steel particles
as the refrigerant passes through the system.
|
IN
STOCK
USA ONLY
On
Sale: $26.95
$16.95 |
IN
STOCK
International
Only
$26.95 |
|
Accumulator
7015937 |
Accumulator
501R, 501F, 601F, 601F-2
Not used with all Serial Dates
Check 1st to make sure you need it |
|
|
|
7016186
HEAT EXCHANGER, REF (201R)
Replaces Part# 4250410 |
7016186
HEAT EXCHANGER, REF (201R)
From #229825 to M385452/P380051 Use Pt# 7016186
Starting With M385453/P380052
Use Pt# 7016375
Prior to Serial #229825 Part Is NLA |
Dimensions:
3/8" tube
& capillary |
|
|
7016375
HEAT EXCHANGER, REF (201R) |
7016375
HEAT EXCHANGER, REF (201R)
Starting With M385453/P380052 Use Pt# 7016375
From #229825 to M385452/P380051
Use Pt# 7016186
Prior to Serial #229825 Part Is NLA |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
7016860
HEAT EXCHANGER, FREEZER (201FD)
Replaces Part# 4250420 |
7016860
HEAT EXCHANGER, FREEZER (201FD)
From #230025
to #299051 Use 7016860
Prior to Serial #230025 Part is NLA
Starting With #299052 Use Pt# 7017503
|
Dimensions:
3/8" tube
& capillary |
|
|
|
7017503
HEAT EXCHANGER, FREEZER (201FD) |
7017503
HEAT EXCHANGER, FREEZER (201FD)
Use Starting With Serial #299052
Prior to Serial #230025 Part is NLA
From #230025 to #299051 Use Pt# 7016860
|
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
7016733
Heat Exchanger SVCE (211, 241) |
7016733
Heat Exchanger SVCE (211, 241)
211
Use Starting With Serial #298402
241
Use Starting With Serial #303252 |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
7017502
HEAT EXCHANGER, REF (241RFD, 251RFD)
Replaces Part# 4250440 |
7017502
HEAT EXCHANGER, REF (241RFD, 251RFD)
241
From #227972 to #303251 use Pt# 7017502
From #209197 to #227971 Use Pt# 7019853
Prior to Serial #209197 Part is NLA
Starting with #303252 Use Pt# 7016733
251
Use From Serial #227972 to #299951
From #209197 to #227971 Use 7019853
Starting with #299952 Part is NLA
Prior to Serial #209197 Part is NLA
|
Dimensions:
3/8" tube
& capillary |
|
|
7019800
HEAT EXCHANGER, REF(244RFD, 249FF)
Replaces Part# 4250510 |
7019800
HEAT EXCHANGER, REF(244RFD, 249FF)
244
Use From #231275 to #M391802/P380476
See 4250030 for additional serial breaks
249FF
Use From #231275 to #M391802/P380476
See 4250030 for additional serial breaks |
Dimensions:
3/8" tube
& capillary |
|
|
7016549
HEAT EXCHANGER, REF (245RFD)
Replaces Part# 4250920 |
7016549
HEAT EXCHANGER, REF (245RFD)
Use Prior to Serial #1011080
From #1011080 to #1217739
Use Pt# 7019767
Starting with #1217740 Use Pt# 7016555 |
Dimensions:
3/8" tube
& capillary |
|
|
7016184
EVAP ASSY, 249R
Replaces Part# 4250010 |
7016184
EVAP ASSY, 249R |
Dimensions:
3/8" tube
& capillary |
|
|
7016044
EVAP ASSY, 249RP
Replaces Part# 4250020 |
7016044
EVAP ASSY, 249RP |
Dimensions:
3/8" tube
& capillary |
|
|
7016107
HEAT EXCHANGER, FRE (550, 2811)
Replaces Part# 4250910 |
7016107
HEAT EXCHANGER, FRE (550, 2811)
550
Use Prior to #M681166/P612941
From M681166/P612941 to
M/P964069 Use Pt# 7016119
From #964070 to #964469 Use Pt# 7016591
From #964470 to #984749 Use Pt# 7016119
From #984750 to #985149 Use Pt# 7016591
From #985150 to #1004774 Use Pt# 7016119
From #1004775 to #1184139 Use Pt# 7016591
From #1184140 to #1184239 Use Pt# 7021954
From #1184240 to #1204989 Use Pt# 7016591
From #1204990 to #1209339 Use Pt# 7021954
From #1209340 to #1210039 Use Pt# 4251270
From #1210040 to #1214589 Use Pt# 7016591
Starting With #1214590 Use Pt# 4251270
2811
Use Regardless of Serial Number |
Dimensions:
3/8" tube
& capillary |
|
|
7016548
HEAT EXCHANGER, REF (2711, 2811)
Replaces Part# 4250850 |
7016548
HEAT EXCHANGER, REF (2711, 2811) |
Dimensions:
3/8" tube
& capillary |
|
|
7016046
HEAT EXCHANGER, REF (2511, 3211)
Replaces Part# 4250460 |
7016046
HEAT EXCHANGER, REF (2511, 3211, 3211RFD)
2511
Use Starting With #228127
3211/3211RFD
Use From #227972 to #402307
Use From #408458 to #408657 |
Dimensions:
3/8" tube
& capillary |
|
|
7016335
Refrigerator Heat Exchanger
|
7016335
3211/3211RFD
Refrigerator Heat Exchanger
Use Starting With Serial #409267 |
Dimensions:
3/8" tube
& capillary |
|
|
7016490
HEAT EXCHANGER, FREEZER (3211)
Replaces Part# 4250480 |
7016490
HEAT EXCHANGER, FREEZER (3211)
Use From Serial #227972 to #299651
From #299652 to M402307/P429834
Use Pt# 7017544
Startng With M402308/P429835 Use Pt# 7016581
From #207497 to #227971 Use 4250300
Prior to Serial #207497 Part is NLA
|
Dimensions:
3/8" tube
& capillary |
|
|
|
|
|
7017544
Heat Exchanger, Fre SVCE (3211) |
7017544
Heat Exchanger, Fre SVCE (3211)
Use From #299652 to M402307/P429834
From #227972 to #299651 Use Pt# 7016490
Startng With M402308/P429835 Use Pt# 7016581
From #207497 to #227971 Use 4250300
Prior to Serial #207497 Part is NLA
|
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
|
|
7016581
Heat Exchanger, Fre SVCE (3211) |
7016581
Heat Exchanger, Fre SVCE (3211)
Use Startng With M402308/P429835
From #299652 to M402307/P429834 Use Pt# 7017544
From #227972 to #299651 Use Pt# 7016490
From #207497 to #227971 Use 4250300
Prior to Serial #207497 Part is NLA |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
7016711
HEAT EXCHANGER (361)
Replaces Part# 4250450 |
7016711
HEAT EXCHANGER (361)
Use From #227972 to #299351 |
Dimensions:
3/8" tube
& capillary |
|
|

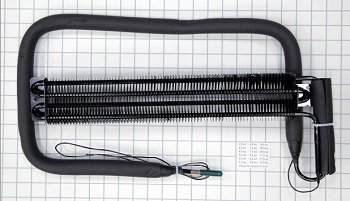

4211541
EVAP ASSY (424-2) |
4211541
EVAP ASSY (424, 424-2)
Use Regardless of Serial Number
Prior to Serial #2376577 the Refrigerant
Charge Must be Changed to 3.5 oz |
Dimensions:
3/8" tube
& capillary |
|
|
7022320
HEAT EXCHANGER, REF (427-2, 430-2)
Replaces Part# 4251810 |
7022320
HEAT EXCHANGER,REF (427-2, 430-2)
For 430-2 Upper or Lower Evap/Heat Ex Assy
Use Pt# 7004682
For 427-2 Lower Evap/Heat Exchanger Assy
Use Pt# 7004682
For 427-2 Upper Evap/Heat Exchanger Assy
Use Pt# 7004683 |
Dimensions:
3/8" tube
& capillary |
|
|
7004682
Evap Assy, Wine SVCE (427-2,430-2,BI-36S) |
7004682
Evap Assy, Wine SVCE (427-2,430-2,BI-36S)
NOTE: Includes Evap and Heat Exchanger
For Evap Only See Pt# 7012142
430-2
Use For Upper or Lower Sections
427-2
Use for Lower Section Only
For Upper Section see Pt# 7004683
BI-36S
Use Starting With Serial #4100000
Prior to #4100000 See Pt# 7010327 |
Dimensions:
3/8" tube
& capillary |
$146.00 |
|
7004683
Evap Assy, 427 Upper SVCE |
7004683
Evap Assy, 427 Upper SVCE
NOTE: Includes Evap and Heat Exchanger
For Evap Only See Pt# 7012142
427-2
Use for Upper Section Only
For Lower Section see Pt# 7004682 |
Dimensions:
3/8" tube
& capillary |
$186.00 |
|
7010327
Evap Assy, Ref SVCE (BI-36S) |
7010327
Evap Assy, Ref SVCE (BI-36S)
Use Prior to Serial Number #4100000
Starting With #4100000 See Pt# 7004682
NOTE: Includes Heat Ex
For Evap Only See Pt# 7010328 |
Dimensions:
3/8" tube
& capillary |
$266.00 |
|

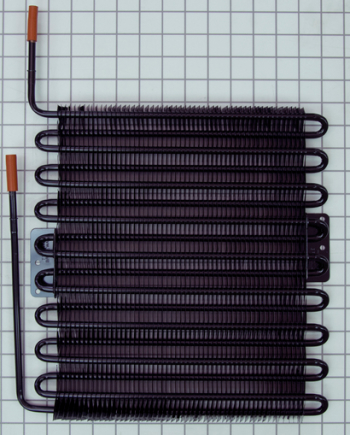

7010328
Evap, Ref SVCE (BI-36S) |
7010328
Evap, Ref SVCE (BI-36S)
NOTE: Use Prior to Serial #4100000
Starting With #4100000 See Pt# 7012142
NOTE: For Evap Assy with Heat Ex See Pt# 7010327 |
Dimensions:
3/8" tube
& capillary |
$186.00 |
|
7012142
Evaporator, Ref
(427-2, 427R-2, 430-2, 661, BI-36S
648PRO, UC-24, 700BR-3, 700TC/I-3, 700TR-3) |
7012142
Evaporator, Ref SVCE
(427-2, 427R-2, 430-2, 661, BI-36S
648PRO, UC-24, 700BR-3, 700TC/I-3, 700TR-3)
BI-36S
Use Starting With Serial Number #4100000
Prior to Serial #4100000 Use Pt# 7010328
700TR-2,700TC-2
See Pt#'s 4204680 & 4204690
ICB700TR
Use Prior to Serial #3300000
Starting With #3300000 Use Pt# 7017603
NOTE: For 427R-2 WINE COMPARTMENT Evaporator
Use Pt# 7012150 |
Dimensions:
3/8" tube
& capillary |
$188.75 |
|
7017603
Evap Assy,Ref SVCE Upper (ICB700TR) |
7017603
Evap Assy, Ref SVCE Upper (ICB700TR)
Use Starting With Serial #3300000
Prior To Serial #3300000 Use Pt# 7012142 |
Dimensions:
3/8" tube
& capillary |
$246.00 |
|
7012150
Evap, Wine SVCE Wine Upper and Lower (427R-2) |
7012150
Evap, Wine SVCE Wine Upper and Lower (427R-2) |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
4204680
Evap Ref 700TR/TC SVCE (700TC-2 700TR-2) |
4204680
Evap Ref 700TR/TC SVCE (700TC-2 700TR-2)
USE IN UPPER REF COMPARTMENT ONLY
For 700TC-3,700TR-3
Use Pt# 7012142 |
Dimensions:
3/8" tube
& capillary |
$226.00 |
|
4204690
Evap 700TR-2 SVCE |
4204690
Evap 700TR-2 SVCE
Use for Lower Ref Compartment of 700TR-2
For 700TR-3
Use Pt# 7012142 |
Dimensions:
3/8" tube
& capillary |
$226.00 |
|
7020564
HEAT EXCHANGER, WINE UPPER (427R, 427R-2)
Replaces Part# 4251460 |
7020564
HEAT EXCHANGER, WINE UPPER (427R, 427R-2) |
Dimensions:
3/8" tube
& capillary |
|
|
7020565
HEAT EXCHANGER, WINE LOWER (427R, 427R-2)
Replaces Part# 4251470 |
7020565
HEAT EXCHANGER, WINE LOWER (427R, 427R-2) |
Dimensions:
3/8" tube
& capillary |
|
|
7020568
HEAT EXCHANGER, REF (427R-2)
Replaces Part# 4251830 |
7020568
HEAT EXCHANGER, REF (427R-2) |
Dimensions:
3/8" tube
& capillary |
|
|
|
7015837PR
Refrigerator Heat
Exchanger
Replaces Part# 4251000 |
501R
Refrigerator Heat
Exchanger
Use Prior to Serial #M/P959220
Use From Serial# M/P960170 to M/P1004774
From Serial# M/P959220
to M/P960169
Use Pt# 7015855
From Serial# M/P1004775 to M/P1204239
Use Pt# 7015855
From Serial# M/P1204240 to M/P1204489
Use Pt# 7014685
From Serial# M/P1204490 to M/P1208739
Use Pt# 7015855
Starting with Serial# M/P1208740
Use Pt# 7014685
Accumulator
for:
501R, 501F, 601F, 601F-2
Not used with all Serial Dates
Check 1st to make sure you need it
Use Part# 7015937
501R
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7015855PR
Refrigerator Heat
Exchanger |
501R
Refrigerator Heat
Exchanger
Use
From Serial# M/P959220 to M/P960169
Use From Serial# M/P1004775 to M/P1204239
Use From Serial# M/P1204490 to M/P1208739
Prior to Serial #M/P959220, and
From Serial# M/P960170 to M/P1004774
Use Pt# 7015837
501R
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
7014685PR
Refrigerator
Heat Exchanger
Replaces Part# 4251310 |
501R, 601R, 601RG,
601R-2, 601RG-2
601R-3, 601RG-3
Refrigerator
Heat Exchanger
501R
Use From Serial# M/P1204240 to M/P1204489
Use Starting with Serial# M/P1208740
Prior to Serial #M/P959220,
and
From Serial# M/P960170 to M/P1004774
Use Pt# 7015837
601R/601RG
Use Regardless of Serial Number
601R-2/601RG-2
Use Regardless of Serial Number
601R-3/601RG-3
Use Regardless of Serial Number
501R Sealed System
Parts Manual
601R Sealed System
Parts Manual
601RG
Sealed System
Parts Manual
601R-2
Sealed System
Parts Manual
601RG-2
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016028PR
Freezer Heat Exchanger
Replaces Part# 4251010 |
501F
Freezer Heat Exchanger
Use Prior to Serial #960170 And Between
#960320 And #996399 Also Use Between
Serial #996575 and #1004774
From Serial# 960170 to #960319
Use Pt# 7019366
From Serial# 996400 to #996574
Use Pt# 7019366
From Serial# 1004775 to #1104939
Use Pt# 7019366
From Serial# 1104940 to #1105139
Use Pt# 7022316
From Serial# 1105140 to #1204489
Use Pt# 7019366
From Serial# 1204490 to #1212289
Use Pt# 7022316
From Serial# 1212290 to #1212489
Use Pt# 7019366
Starting with Serial# 1212490
Use Pt# 7022316
501F Sealed System
Parts Manual
|
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7019366PR
Freezer Heat Exchanger |
501F
Freezer Heat Exchanger
Use
From Serial# M/P960170 to M/P960319 And
From Serial#
M/P996400 to M/P996574 And
From Serial#
M/P1004775 to M/P1104939 And
From Serial#
M/P1105140 to M/P1204489 And
From Serial#
M/P1212290 to M/P1212489
Prior to Serial #960170,
Between
#960320 And #996399 & Between
Serial #996575 and #1004774
Use Pt# 7016028
DOES NOT INCLUDE ARMAFLEX INSULATION,
IF NEEDED Use Pt# 1400500
501F
Sealed System
Parts Manual
|
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7022316PR
Freezer Heat Exchanger |
501F,
601F, 601F-2
Freezer Heat Exchanger
501F
Use From Serial# M/P1104940 to M/P1105139
Use From Serial# M/P1204490 to M/P1212289
Use Starting with Serial# M/P1212490
Prior
to Serial #960170, Between
#960320 And #996399 & Between
Serial #996575 and #1004774
Use Pt# 7016028
DOES NOT INCLUDE ARMAFLEX INSULLATION,
IF NEEDED ALSO ORDER Pt# 1400500
601F/601F-2
Use Regardless of Serial Number
501F Sealed System
Parts Manual
|
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7015724PR
Refrigerator Heat Exchanger
Replaces Part# 4251050
|
511, 550
Refrigerator Heat Exchanger
511
Use Prior to Serial# M/P964470
Use From Serial# M/P964770 to M/P1004774
From Serial# M/P964470 to M/P964769
Use Pt# 7015850
From Serial# M/P1004775 to M/P1204689
Use Pt# 7015850
Starting with Serial# M/P1204690
Use Pt# 7015951
550
Use From Serial# M681166/P612941 to M/P964069
Use From Serial# M/P964470 to M/P984749
Use From Serial# M/P985150 to M/P1004774
Prior
to Serial# M681166/P612941
Use Pt# 7015718
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7015850PR
Refrigerator Heat Exchanger
|
511, 550
Refrigerator Heat Exchanger
511
Use From M/P964470 to M/P964769
Use From M/P1004775 to M/P1204689
Prior to Serial# M/P964470
From Serial# M/P964770 to M/P1004774
Use Pt# 7015724
Starting with Serial# M/P1204690
Use Pt# 7015951
550
Use From Serial# M/P964070 to M/P964469
Use From Serial# M/P984750 to M/P985149
Use From Serial# M/P1004775 to M/P1184139
Use From Serial# M/P1184240 to M/P1204989
From Serial# M681166/P612941 to M/P964069
From Serial# M/P964470 to M/P984749
From Serial# M/P985150 to M/P1004774
Use Pt# 7015724
Prior
to Serial# M681166/P612941
Use Pt# 7015718
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7015951PR
Refrigerator Heat Exchanger
|
511, 611
Refrigerator Heat Exchanger
511
Use Starting With Serial #M/P1204690
Prior to Serial# M/P964470, and
From Serial# M/P964770 to M/P1004774
Use Pt# 7015724
611
Use Prior to Serial #2147190
Starting With Serial #2147190
Use Pt# 7016012
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016012PR
Refrigerator
Heat Exchanger
Replaces Pt# 4251570
|
611-2,
650-2, 685-2
Refrigerator
Heat Exchanger
611-2
Use Starting With Serial #2147190
Prior to Serial #2147190
Use Pt# 7015951
650-2
Use Starting With Serial #2128097
Prior to Serial #2128097
Use Pt# 7015918
685-2
Use Starting With Serial #2271174
Prior to Serial #2271174
Use Pt# 7014670
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7015918PR
Refrigerator
Heat Exchanger
|
550, 650
Refrigerator
Heat Exchanger
550
Use From Serial# M/P1184140 to M/P1184239
and Starting With M/P1204990
Prior
to Serial# M681166/P612941
Use Pt# 7015718
650
Use Prior to Serial #2128097
Starting With Serial #2128097
Use Pt# 7016012
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016119PR
Freezer
Heat Exchanger
Replaces Part# 4251040
|
511, 550
Freezer
Heat Exchanger
511
Use Prior to Serial# 964470
Use From Serial #964770 to #1004774
From Serial# 964470 to #964769
Use Pt# 7016591
From Serial# 1004775 to #1204689
Use Pt# 7016591
Starting With Serial# 1204690
Use Pt# 7016527
550
Use From Serial# M681166/P612941 to M/P964069
Use From Serial# 964470 to #984749
Use From Serial# 985150 to #1004774
For Additional Serial#'s
Use Pt#
7016107
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7016591PR
Freezer
Heat Exchanger
|
511, 550
Freezer
Heat Exchanger
511
Use From Serial# M/P964470 to M/P964769
Use From Serial# M/P1004775 to M/P1204689
Use Prior to Serial# 964470
From Serial #964770 to #1004774
Use Pt# 7016119
550
Use From Serial# M/P964070 to M/P964469
Use From Serial# M/P984750 to M/P985149
Use From Serial# M/P1004775 to M/P1184139
Use From Serial# M/P1184240 to M/P1204989
Prior to Serial# M681166/P612941
Use Pt# 7016107
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$166.00 |
|
|
7016527PR
Freezer
Heat Exchanger
|
511, 611,
611-2, 611-3
Freezer
Heat Exchanger
511
Use Starting with Serial #M/P1204690
Use Prior to Serial# 964470
From Serial #964770 to #1004774
Use Pt# 7016119
611
Use Regardless of Serial Number
611-2
Use Regardless of Serial Number
611-3
Use Regardless of Serial Number
511 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$119.00 |
|
|
7015718PR
Refrigerator Heat Exchanger
Replaces Part# 4250960
|
532/550
Refrigerator Heat Exchanger
532
Use Prior to Serial# M681566/P612141
From Serial# M681566/P612141 to M/P964769
Use Pt#
7020563
From Serial# M/P964770 to M/P965069
Use Pt#
7015832
From Serial# M/P965070 to M/P990699
Use Pt#
7020563
From Serial# M/P990700 to M/P990999
Use Pt#
7015832
From Serial# M/P991000 to M/P1004774
Use Pt#
7020563
From Serial# M/P1004775 to M/P1185039
Use Pt#
7015832
From Serial# M/P1185040 to M/P1185139
Use Pt#
7014670
From Serial# M/P1185140 to M/P1203739
Use Pt#
7015832
From Serial# M/P1203740 to M/P1203839
Use Pt#
7014670
From Serial# M/P1203840 to M/P1206089
Use Pt#
7015832
Starting with M/P1206090
Use Pt#
7014670
550
Use Prior to Serial# M681166/P612941
From Serial# M681166/P612941 to M/P964069
Use Pt#
7015724
From Serial# M/P964070 to M/P964469
Use Pt#
7015850
From Serial# M/P964470 to M/P984749
Use Pt#
7015724
From Serial# M/P984750 to M/P985149
Use Pt#
7015850
From Serial# M/P985150 to M/P1004774
Use Pt#
7015724
From Serial# M/P1004775 to M/P1184139
Use Pt#
7015850
From Serial# M/P1184140 to M/P1184239
Use Pt#
7015918
From Serial# M/P1184240 to M/P1204989
Use Pt#
7015850
Starting with Serial# M/P1204990
Use Pt#
7015918
532 Sealed System
Parts Manual
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$135.00 |
|
|
7015832PR
Refrigerator Heat Exchanger
|
532
Refrigerator Heat Exchanger
532
Use From Serial# M/P964770 to M/P965069
Use From Serial# M/P990700 to M/P990999
Use From Serial# M/P1004775 to M/P1185039
Use From Serial# M/P1185140 to M/P1203739
Use From Serial# M/P1203840 to M/P1206089
Prior to Serial#
M681566/P612141
Use Pt# 7015718
532
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$135.00 |
|
|
7015858PR
Freezer Heat Exchanger
Replaces Part# 4250970
|
532
Freezer Heat Exchanger
532
Use Prior to Serial# M681566/P612141
From Serial# M681566/P612141 to M/P964769
Use Pt# 7015748
From Serial# M/P964770 to M/P965069
Use Pt# 7016120
From Serial# M/P965070 to M/P990699
Use Pt# 7015748
From Serial# M/P990700 to M/P990999
Use Pt# 7016120
From Serial# M/P991000 to M/P1004774
Use Pt# 7015748
From Serial# M/P1004775 to M/P1185039
Use Pt# 7016120
From Serial# M/P1185040 to M/P1185139
Use Pt# 7022314
From Serial# M/P1185140 to M/P1203739
Use Pt# 7016120
From Serial# M/P1203740 to M/P1203839
Use Pt# 7022314
From Serial# M/P1203840 to M/P1206089
Use Pt# 7016120
Starting with M/P1206090
Use Pt# 7022314
532 Sealed System
Parts Manual
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016120PR
Freezer Heat Exchanger
Replaces Part# 4250970
|
532, 561,
590
Freezer Heat Exchanger
532
Use From Serial# 964770 to #965069
Use From Serial# 990700 to #990999
Use From Serial# 1004775 to #1185039
Use From Serial# 1185140 to #1203739
Use From Serial# 1203840 to #1206089
Prior to Serial# M681566/P612141
Use Pt# 7015858
561
Use From Serial #965470 to #965869
Use From Serial# 1004775 to #1198139
Use From Serial# 1198390 to #1203139
Use Prior to Serial# M/P965470
From Serial# M/P965870 to M/P1004774
Use Pt# 7015748
590
Use From Serial #965870 to #966269
Use From Serial 1004775 to #1197839
Use Prior to Serial #965870
From Serial# 966270 to #1004774
Use Pt# 7016694
532 Sealed System
Parts Manual
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016694PR
Freezer Heat Exchanger
Replaces Part# 4251090
|
590
Freezer Heat Exchanger
590
Use Prior to Serial #965870
Use From Serial# 966270 to #1004774
From Serial# 965870 to #966269
Use Pt# 7016120
From Serial# 1004775 to #1197839
Use Pt# 7016120
Starting With Serial# #1197840
Use Pt# 7016550
532 Sealed System
Parts Manual
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016107PR
Freezer
Heat Exchanger
Replaces Part# 4250910
|
550, 2811
Freezer
Heat Exchanger
550
Use Prior to Serial# M681166/P612941
From Serial# M681166/P612941 to M/P964069
Use Pt# 7016119
From Serial# 964070 to #964469
Use Pt# 7016591
From Serial# 964470 to #984749
Use Pt# 7016119
From Serial# 984750 to #985149
Use Pt# 7016591
From Serial# 985150 to #1004774
Use Pt# 7016119
From Serial# 1004775 to #1184139
Use Pt# 7016591
From Serial# 1184140 to #1184239
Use Pt# 7021954
From Serial# 1184240 to #1204989
Use Pt# 7016591
From Serial# 1204990 to #1209339
Use Pt# 7021954
From Serial# 1209340 to #1210039
Use Pt# 7022315
From Serial# 1210040 to #1214589
Use Pt# 7016591
Starting With #1214590
Use Pt# 7022315
2811
Use Regardless of Serial Number
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$139.00 |
|
|
7021954PR
Freezer
Heat Exchanger
|
550
Freezer
Heat Exchanger
550
Use From Serial #1184140 to #1184239
Use From Serial #1204990 to #1209339
Prior to Serial# M681166/P612941
Use Pt# 7016107
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$160.00 |
|
|
7022315PR
Freezer Heat Exchanger
Replaces Pt# 4251270
|
550
Freezer Heat Exchanger
550
Use From Serial #1184140 to #1184239
Use From Serial #1204990 to #1209339
Prior to Serial# M681166/P612941
Use Pt# 7016107
550 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7014670PR
Refrigerator
Heat Exchanger
Replaces Part# 4251300
|
532, 590,
632, 680, 690, 685-2, 695-2
Refrigerator
Heat Exchanger
532
Use From Serial# M/P1185040 to M/P1185139
Use From Serial# M/P1203740 to M/P1203839
Use Starting with Serial# M/P1206090
For additional Serial#'s
Use Pt# 7015718
590
Use Starting with Serial# M/P1197840
For additional Serial#'s
Use Pt# 7020563
632
Use Prior to Serial# 2128562
Starting with Serial# 2128562
Use Pt# 7016404
680/685-2
Use From Serial# 1810000 to #2271174
Prior to Serial# 1810000
Use Pt# 7014690
Starting w/Serial# 2271174
Use Pt# 7016012
690/695-2
Use Prior to Serial# 2269189
Starting with Serial# 2269189
Use Pt# 7016491
590 Sealed System
Parts Manual
632 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016491PR
Refrigerator
Heat Exchanger
Replaces Part# 4251300
|
695-2
Refrigerator
Heat Exchanger
695-2
Use Starting With Serial# 2269189
Prior to Serial# 2269189
Use Pt# 7014670
590 Sealed System
Parts Manual
632 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016404PR
Refrigerator Heat Exchanger
Replaces Part# 4251300
|
650G, 632-2,
650G-2
Refrigerator Heat Exchanger
632-2
Use Starting With Serial# 2128562
Prior to Serial# 2128562
Use Pt# 7014670
650G/650G2
Use Prior to Serial# 2223214
Starting With Serial# 2223214
Use Pt# 7019805
590 Sealed System
Parts Manual
632 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7019805PR
Refrigerator
Heat Exchanger
|
650G, 632-2,
650G-2
Refrigerator
Heat Exchanger
632-2
Use Starting With Serial# 2128562
Prior to Serial# 2128562
Use Pt# 7014670
650G/650G2
Use Prior to Serial# 2223214
Starting With Serial# 2223214
Use Pt# 7019805
590 Sealed System
Parts Manual
632 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016550PR
Freezer Heat
Exchanger
Replaces Part# 4251340
|
590, 680,
690, 695-2
Freezer Heat
Exchanger
590
Use Starting With Serial #1197840
For Additional Serial#'s
Use Pt# 7016694
680
Use Prior to Serial #1810000
From Serial# #1810000 to #2271174
Use Pt# 7016221
690
Use Prior to Serial #1810000
Starting With Serial# 1810000
Use Pt# 7019342
695
Use Regardless of Serial Number
590 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7016221PR
Freezer Heat
Exchanger
Replaces Part# 4251250
|
561, 680,
685-2
Freezer Heat
Exchanger
561
Use From Serial# 1198140 to #1198389
Use Starting With Serial# 1203140
Use Prior to Serial# M/P965470
From Serial# M/P965870 to M/P1004774
Use Pt# 7015748
680/685-2
Use From Serial #1810000 to #2271174
Prior to Serial# 1810000
Use Pt# 7016550
Starting With Serial# 2271174
Use Pt# 7022318
590 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7022318PR
Freezer Heat
Exchanger
|
685-2
Freezer Heat
Exchanger
685-2
Use Starting With Serial #2271174
From Serial# 1810000 to #2271174
Use Pt# 7016221
590 Sealed System
Parts Manual
680 Sealed System
Parts Manual
690 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7019342PR
Freezer Heat
Exchanger
Replaces Part# 4251340
|
690,
695-2
Freezer Heat
Exchanger
Use From Serial #1810000 to #2269189
Prior to Serial# 1810000
Use Pt# 7016550
Starting With Serial# 2269189
Use Pt# 7006504
690 Sealed System
Parts Manual
695-2
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7006504PR
Freezer
Heat Exchanger
Replaces Part# 4251340
|
695-2,
695-3
Freezer
Heat Exchanger
Use Starting with Serial #2269189
Prior to Serial #2269189
Use Pt# 7019342
695-2
Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7022314PR
Freezer Heat
Exchanger
Replaces Part# 4251260
|
532,
632, 632-2, 632-3
Freezer Heat
Exchanger
532
Use From #P1185040 to #1185139 And
From #1203740 to #1203839 And Also
Starting With #1206090
For Additional Serial#'s
Use Pt# 7015858
632
Use Regardless of Serial Number
632-2
Use Regardless of Serial Number
632-3
Use Regardless of Serial Number
632 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7014690PR
Refrigerator Heat Exchanger
Replaces Part# 4251240
|
542, 561,
642, 680
Refrigerator Heat Exchanger
542
Use Regardless of Serial Number
561
Use From Serial# M/P1198140 to M/P1200489
Use Starting with Serial# M/P1203140
Prior to Serial# P965870
From Serial# 966270 to #1004774
Use Pt# 7020563
642
Use Prior to Serial# 2143499
Starting With Serial# 2143499
Use Pt# 7016178
680
Use Prior to Serial# 1810000
Starting With Serial# 1810000
Use Pt# 7014670
542 Sealed System
Parts Manual
642
Sealed System
Parts Manual
680 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7016178PR
Refrigerator Heat Exchanger
Replaces Part# 4251240
|
642-2
Refrigerator Heat Exchanger
Use Starting With Serial #2143499
Prior to Serial# 2143499
Use Pt# 7014690
542 Sealed System
Parts Manual
642
Sealed System
Parts Manual
680 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
|
7022317PR
Freezer Heat Exchanger
Replaces Part# 4251400
|
542, 642,
642-2
Freezer Heat Exchanger
Use Regardless of Serial Number
542 Sealed System
Parts Manual
642 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$146.00 |
|
|
7020563PR
Refrigerator Heat Exchanger
Replaces Part# 4250980
|
532,
561, 590
Refrigerator Heat Exchanger
532
Use From Serial# M681566/P612141 to M/P964769
Use From Serial #965070 to #990699
Use From Serial #991000 to #1004774
For Additional Serial#'s
Use Pt# 7015718
561
Use Prior to Serial# 965470
Use From Serial# 965870 to #1004774
From Serial# 965470 to 965869
Use Pt# 7015840
From Serial#1004775 to #1198139
Use Pt# 7015840
From Serial#1198140 to #1200489
Use Pt# 7014690
From Serial#1200490 to #1203139
Use Pt# 7015840
Starting with Serial#1203140
Use Pt# 7014690
590
Use Prior to Serial #P965870
Use From #966270 to #1004774
From #965870 to #966269
Use Pt# 7015840
From #1004775 to #1197839
Use Pt# 7015840
Starting With #1197840
Use Pt# 7014670
561 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7015840PR
Refrigerator
Heat Exchanger
Replaces Part# 4250980
|
561,
590
Refrigerator
Heat Exchanger
561
Use From Serial# M/P965470 to M/P965869
Use From Serial# M/P1004775 to M/P1198139
Use From Serial# M/P1200490 to M/P1203139
Use Prior to Serial# 965470
From Serial# 965870 to #1004774
Use Pt# 7020563
Starting with Serial#1203140
Use Pt# 7014690
590
Use From Serial# M/P965870 to M/P966269
Use From Serial# M/P1004775 to M/P1197839
Use Prior to Serial #P965870
From Serial# 966270 to #1004774
Use Pt# 7020563
561 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$136.00 |
|
|
7015748PR
Freezer Heat Exchanger
Replaces Part# 4250990
|
532,
561
Freezer Heat Exchanger
532
Use
From Serial# M681566/P612141
to M/P964769
Use From Serial# M/P965070 to M/P990699
Use From Serial# M/P991000 to M/P1004774
Prior to Serial# M681566/P612141
Use Pt# 7015858
561
Use Prior to Serial# M/P965470
Use From Serial# M/P965870 to M/P1004774
From Serial# M/P965470 to M/P965869
Use Pt# 7016120
From Serial# M/P1004775 to M/P1198139
Use Pt# 7016120
From Serial# M/P1198140 to M/P1198389
Use Pt# 7016221
From Serial# M/P1198390 to M/P1203139
Use Pt# 7016120
Starting with Serial# M/P1203140
Use Pt# 7016221
561 Sealed System
Parts Manual |
Dimensions:
3/8" tube
& capillary |
$129.00 |
|
