SubZero Model#:

Part#

SubZero Evaporator Fan Motors

661

Fan Blades

SubZero Evaporator Fan Motors & Accessories


Refrigerator/Freezer
UV Dye Filter/Drier
Replacement for
OEM 7006964

  • 100% XH-9 Beaded desiccant
  • Compatible with all new and existing refrigerants and oils.
  • Reduces wear & tear on component parts
  • Maximum working pressure 500psi.
  • Use on capillary or expansion valve systems.
  • Hermetically sealed, directional flow with access valve.
  • Copper shells and end tubes.
  • 100 Micron filter sieve.
  • Easy break off grooved ends.
  • Reduces clogged capillary tubes.
  • Magnetic reduction filter reduces microscopic steel, iron, & stainless steel particles as the refrigerant passes through the system.
On Sale: $26.95
$42.95

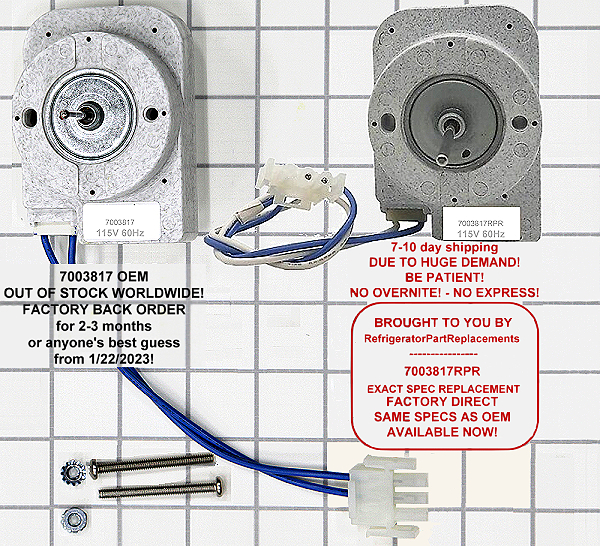

7003817RPR
RefrigeratorPartReplacements

EXACT SPEC REPLACEMENT
FACTORY DIRECT
NON OEM

Freezer Evaporator Fan Motor Assy

Refrigerator/Freezer
Evaporator Fan Motor

700TR-3, 700TF-3, 700TC/I-3, 736TC/I-3
736TF/I, 700BC/I-3, IC-27F, IC-27R, UC-24B
UC-24R, UC-24RO, 424, UW-24, 600 Series
700BC/I-3
Use In Ref Only
700TC/I-3
Use in Both Ref And Freezer
736TC/I-3
Use in Both Ref And Freezer
UC24B/R/RO
Use Starting With Serial #3589500
Prior to #3589500 See 4220801
424
Use Starting With Serial #3215000
Prior to #3215000 Use Pt# 4220801
IC-27F
Also Use Pt# 7040145
For Complaint Of Loud Fan Motor
600 Series
Use for Replacement of Original
Panasonic Motor

AVAILABLE NOW!
7003817RPR
EXACT SPEC REPLACEMENT
FACTORY DIRECT
BROUGHT TO YOU BY RefrigeratorPartReplacements
NON-OEM

BUY NOW!

SHIPPING TIME:
7-10 DAYS
PLEASE BE PATIENT!!!
NO EXPEDITE/NO OVERNITE!!

$129.90

OEM ON FACTORY BACK ORDER
OUT OF STOCK
UNTIL SOMETIME AFTER
MAR 11, 2023 OR
WHO KNOWS FOR SURE!



4220801
Freezer Evaporator Fan Motor Assy

Evap Fan Motor Assy
400/400-2, UC-24, 700BR-3
424
Use Prior to Serial #3215000

Starting With #3215000
Use Pt# 7003817
UC24B/R/RO
Use Prior to Serial #3589500

Starting With #3589500
Use Pt# 7003817
$166.80


4200720

Evaporator Fan Motor Assy
Refrigeratotr/Freezer Evaporator Fan Motor
501R, 501F
501R
Use Regardless of Serial Number

501F
Use Prior to #M/P1004775 Except Between
#M960170-M960319 & #M996400-M996574

Starting With #M/P1004775 & Between
#M960170-M960319 & #M996400-M996574
Use Pt# 4201770
$219.65


4201770

Evaporator Fan Motor Assy
Freezer Evaporator Fan Motor Assy
501F, 601F, 601F-2
501F
Use Starting w/Serial #M/P1004775 &
Between #M960170-M960319 & Between
#M996400-M996574

Prior to #M/P1004775 Except
Beween #M960170-M960319 & Except
between #M996400-M996570
Use Pt# 4200720
601F
Use Regardless of Serial Number
601F-2
Use Regardless of Serial Number
$219.65


4200170
Evaporator Fan Motor Assy

Refrigerator Evaporator Fan Motor Assy
532, 550, 561, 590
532
550
Use Regardless of Serial#
561, 590
Use Starting with Serial #265836
Prior to Serial #265836
Use Pt# 7016017

642
Use Regardless of Serial#
650
Use Regardless of Serial#

$219.65


7016017
Evaporator Fan Motor Assy
Refrigerator Evaporator Fan Motor Assy
201R, 211, 215R, 241,
251, 361, 2511, 3211, 561

Use Prior to #265836(6 DIGIT SERIAL#)
Starting With #265836
Use Pt# 4200170
$189.70


4200160
Evaporator Fan Motor Assy

Freezer Evaporator Fan Motor Assy
201FD, 661
661
Use before Serial# 2263434

Starting with Serial# 2263434
Use Pt# 7016489

695
Use Prior to Serial #2269189
Starting With #2269489 See 7016177

650
Use Regardless of Serial#

$216.55


7016489
Freezer Evaporator Fan Motor Assy
Freezer Fan Assy, Evap
661
Use Starting With Serial #2263434
Prior to Serial #2263434
Use Pt# 4200160
$189.70


4201940
Evap Fan Motor Assy
Refrigerator/Freezer
Evap Fan Motor Assy
700TC/I, 700TR, 700TF/I,
700BR, 700BF/I, 700BR-2, 700BF/I-2,
700BC/I-3, 700BF/I-3
NOTE:
FOR MODEL 700TC/I PRIOR TO SERIAL #1397040,
ALSO ORDER SUMP COVER PART #4151900
$189.70


7010508
Refrigerator Evaporator Fan Assy
NOTE: For Fan Motor Only
Use Pt# 7012007

Refrigerator Evaporator Fan Assy
BI-48S, BI-48SD, BI-30U, BI-30UG,
BI-36U, BI-36UG, BI-36UFD
NOTE: For Motor Only Use Pt# 7012007

36U/UG/UFD
Use Prior to #4100000 And Starting With
Serial #4250000

From #4100000 to #4105648
Use Pt# 7014352
From #4210912 to #4250000
Use Pt# 7014352
*Also Use From #4105648 to 4210912, If
Air Flow Enhancement Package Has Been
Installed

BI-30U/UG
Use Prior to #4100000 And Starting With
Serial #4250000

From #4100000 to #4250000
Use Pt# 7014352
*Also Use From #4100000 to 4250000 If
Air Flow Enhancement Package Has Been
Installed

BI-48S/SD
Use Prior to Serial #4100000

Starting With #4100000
Use Pt# 7014352

$188.70


7012007

Evaporator Fan Motor
Evaporator Fan Motor
BI-Series
NOTE: Also Order Replacement Fan Blade as The
Blades Are Difficult to Remove and Reuse
Fan Blade Pt# 7011058
$139.45


7014352
Refrigerator Evaporator Fan Assy
NOTE: For Fan Motor Only
Use Pt# 7012007

Refrigerator Evaporator Fan Assy
BI-48S, BI-48SD, BI-30U,
BI-30UG, BI-36U, BI-36UG
NOTE: For Motor Only Use Pt# 7012007

36U/UG/UFD
Use From #4100000 to #4105648 And Also
From #4210912 to #4250000

Prior to #4100000 And Starting With
Serial #4250000
Use Pt# 7010508
*From #4105648 to 4210912
Use Pt# 7010508 If
Air Flow Enhancement Package Has Been
Installed

BI-30U/UG
Use From Serial #4100000 to #4250000

Prior to #4100000 And Starting With
Serial #4250000
Use Pt# 7010508

BI-48S/SD
Use Starting With Serial #4100000

Prior to #4100000
Use Pt# 7010508

$148.70


7014711
Evaporator Fan blade, freezer 5 prop
Replaces Pt# 3150060
Freezer Evaporator Fan Blade
5-Prop 5-1/2"

201FD,211,215FD,241,
251, 361, 2411, 2511, 501R, 501F, 532,
542, 561, 590, 632, 642, 690, 632-2,
642-2, 695-2, 700 Series, 700BR-2,
700BF/I-2, 700BC/I-3, 700BF/I-3
200/300 Series

Use Regardless of Serial Number
501R
Use Pt# 7016382
501F
Use Prior to #M663116/P679466 And From
#M663116/P679466 to #M/P1004775

Between #M960170-M960319
& #M996400- M996574
Use Pt# 7016382
Starting With #M/P1004775 & Between #M960170-
M960319 & #M996400-M996574
Use Pt# 7016390
$16.75


7016382
Evaporator Fan blade, freezer 5 prop
Replaces Pt# 3150450
Evaporator Fan Blade
5-Prop 5-1/2"

501R, 501F
501R
Use Regardless of Serial Number

501F
Use From #M663116/P679466 to #M/P1004775
Except Between #M960170-M960319 And
#M996400-M996574

Prior to #M663116/ P679466
Use Pt# 7014711
Starting With #M/P1004775 And Between #M960170-M960319
And #M996400-M996574
Use Pt# 7016390
$16.75


7016390
Evaporator Fan blade, 4 prop
Replaces Pt# 3150520
Evaporator Fan Blade, 4 prop
201RIM, 501F, 601F, 601F-2, UC-24
201RIM
Use Regardless of Serial Number
501F
Use Starting With #M/P1004775 And
Between #M960170-M960319 And Between
#M996400-M996574

Prior to #M/P1004775
Except Beween #M960170-M960319 & Except
Btwn #M996400-M996570
Use Pt# 7016382
601F
Use Regardless of Serial Number
601F-2
Use Regardless of Serial Number
$16.75


7011058
Evaporator Fan blade

Fan Blade, White
All BI-Series, 736TR, 736TC/I
736TR/TC/I Ref
Use Starting With Serial #2970000
Use From #2953454 to #2953517 And
Use From #2955770 to #2955775

Prior to Serial #2970000 Except
From #2953454 to #2953517 And Except
From #2955770 to #2955775
Use Pt# 7014699

736TC/I Freezer
Use Pt# 7014699 Regardless of Serial

BI-30U/UG
Use Prior to #4100000 And Starting With
Serial #4250000 In Ref

From #4100000 to #4250000
Use Pt# 7014351
NOTE: Use Regardless of Serial in Freezer on
BI-30U/UG

36U/UG/UFD
Use Prior to #4100000 And Starting With
Serial #4250000 In Ref

From #4100000 to #4105648
Use Pt# 7014351
From #4210912 to #4250000
Use Pt# 7014351
*Also Use From #4105648 to 4210912 If
Air Flow Enhancement Package Has Been
Installed
NOTE: Use Regardless of Serial in Freezer on

BI-36U/UG/UFD
BI Series Other Than 30U/UG, 36U/UG/UFD
Use Prior to Serial #4100000 In Ref

Starting With Serial #4100000
Use Pt# 7014351 In Ref
Use 7014351 In Freezer Regardless Of
Serial Number

$28.75


7014351
Evaporator Fan Blade - Clear

Evaporator Fan Blade - Clear
BI Series Other Than 30U/UG,36U/UG/UFD
Use Starting With Serial #4100000 In Ref

Prior to #4100000
Use Pt# 7011058 For Ref
Use Regardless Of Serial In Freezer

BI-30U/UG
Use From #4100000 to #4250000 In Ref

Prior to #4100000 and Starting With #4250000
Use Pt# 7011058 In Ref
NOTE: Use 7011058 In Freezer Regardless of
Serial on BI-30U/UG

36U/UG/UFD
Use From #4100000 to #4105648 And Also
From #4210912 to #4250000 In Ref

Prior to #4100000 And Starting With
Serial #4250000
Use Pt# 7011058
*From #4105648 to 4210912
Use Pt# 7011058 If
Air Flow Enhancement Package Has Been
Installed
NOTE: Use 7011058 In Freezer Regardless of
Serial on BI-36U/UG/UFD

$29.75


7014696

Evaporator Fan Blade - White
Evaporator Fan Blade - White
532
NOTE: If Ref Fan Blade is Grey, Replace with
White Blade 7014696
$29.65


New Restoration Kits / Service & Repair Assistance

AVAILABLE NOW!!
Zoom Technical Repair Assistance

for All Customers
... through Zoom Video

Free diagnosis/repair consultation!
2 hrs of repair help only $49.95


ZOOM REPAIR ASSISTANCE
for Customers
click here to contact us

Available Now!
New Refrigeration System
Rebuild/Restoration Repair

click here
Don't Buy a New Refrigerator/Freezer
for $10-18 GRAND!
REPAIR IT, IT'S MUCH CHEAPER & POSSIBLE,
NO MATTER WHAT SUBZERO IS TELLING YOU!



AVAILABLE NOW!!
Zoom Technical Repair Assistance

for Service Companies & Techs
... through Zoom Video

-->Convert R12 Systems to R134a Assistance<--

It's been falsely claimed since 1991, that converting R12 systems to R134a,
will cause sludging, and it is absolutely false! I have been converting them since 1991,
and not one system ever sludged up, or had any issue at all, but cooled perfectly!
The automotive industry has also been retro-fitting R12 to R134a, since 1991!
DO NOT PUT R12 COMPRESSORS IN ANYMORE, IT IS NOT THE PROPER REPAIR!

Virtual Service & Repair Assistance

Owner Michael C Riley
Live "ZOOM" Video Conferencing technical assistance
for product owners and technicians seeking trusted
expertise on all your appliance repairs,
is your best alternative today, to avoid being worried about having a technician
show up at your door, and letting them into your home!

Don't take any chances with your health, in these dire times!
We will walk you through all appliance repairs, and gaurantee
that we can help you fix your appliance
or you don't pay us anything for our time!

Contact us Now, to connect with a Professional Technician

When you don’t have time to search all over for accurate information
for your specific appliance repair, we are here to help with all your appliance repair needs.
Our Appliance Repair Virtual Hotline is available 24/7, waiting to help.
If it’s new to you, chances are we’ve seen it before.

I recorded this video while I was still living in San Diego, and have since moved back home
to where I grew up in Arizona, and am now living in Apache Junction, AZ.





Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
